EN04

The ENCLADTM EN04 engineered rainscreen support system is designed for secret hook-on fixing of medium to heavy weight cladding materials, generally used in vertical orientation.

The support system can accommodate various insulation thickness in the rainscreen cavity to assist with meeting H1-energy efficiency requirements.

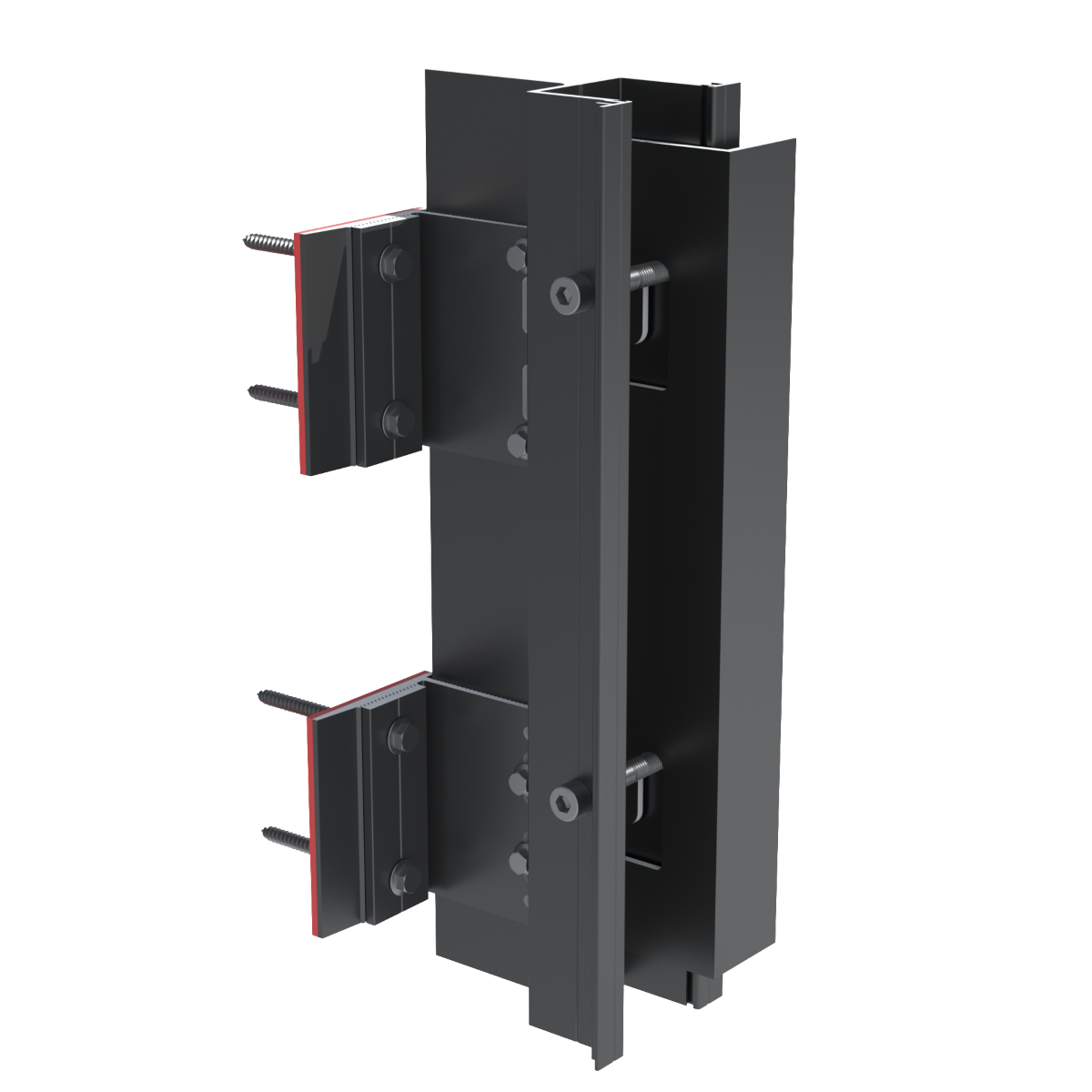

EN04 consists of an engineered grip slide bracket which allows the vertical cladding support rail to be adjusted in and out so the system can easily accommodate building tolerances without the need for packers. The cladding panels are prefabricated offsite and hooked on to a pin within the vertical rail for speed of installation onsite.

The support system can be used in conjunction with different rainscreen cladding types inclusive of:

  • Metal cladding (Solid Aluminium, Perforated Aluminium, Expanded Mesh, Stainless Steel, Zinc)
  • High Pressure Laminate (HPL)
  • Porcelain

System Features:

The EN04 engineered rainscreen support system is extruded from 3mm solid aluminium as a minimum to meet (B1) Structure compliance.

The extrusions are Duralloy powdercoated for enhanced (B2) Durability compliance.

  • Non-combustible.
  • Accommodates insulation/firestops within cladding cavity zone.
  • Adjusts to take up building tolerance & plumb level.
  • Suitable for various medium to heavyweight cladding types.
  • Secret fixed cladding panels.
  • Fast to install on-site.

Cladding Types & Cavity Widths

CLADDING TYPE

EN04 SUPPORT SYSTEM

(Cavity Widths)

Extruded Aluminium Plank (Horizontally Laid)

N/A

Extruded Aluminium Plank

(Vertically Laid)

N/A

Solid Aluminium



119mm*1

128mm*2

153mm*3



Alucolux®

Perforated Aluminium

Stainless Steel

Copper

Solid Zinc

High Pressure Laminate (HPL) Facades

125mm*1

137mm*2

162mm*3

Terracotta Tiles / Planks

(Horizontally Laid)

N/A

Terracotta Tiles / Planks

(Vertically Laid)

N/A

Porcelain Tiles

N/A

GRC

N/A



*1 To suit 50mm insulation; *2 To suit 75mm insulation; *3 To suit 100mm insulation
